Medicines authentication by quadrupole resonance

Start date December 2012

Client King's College London
Investigator

Dr David Nugent
david.nugent@elucidare.co.uk


Abstract

Counterfeit and substandard medicines constitute a serious threat to public health. The scale of the problem is already great – particularly in the developing world – and is still growing. Funded by the Wellcome Trust, King's College London researchers have developed a prototype portable medicines authentication device based on quadrupole resonance (QR) spectroscopy. Employing innovative parametric data processing techniques developed in association with Lund University, the system provides non-invasive non-desructive and quantitative inspection of packaged medicines. A prototype authenticator has been developed and is presented for commercialisation.


Capabilities

QR spectroscopy can identify and quantify different polymorphs of pharmaceutical agents. It is important to emphasize that QR measurements could be carried out with the presence of excipients in the sample without modifications in most cases. The properties of QR permit the study of both raw materials and different mixtures, such as several active agents, different polymorphs, and amorphous or crystalline mixture. For this reason, QR could be a powerful technique to detect soild-state uniformity content in intermediate and final products.

The first-generation system is targetted at nitrogen- and/or chlorine-containing medicines in blister packs and bottles without the need to remove these items from their packaging. Initial studies have been based on a database consisting of the QR "fingerprints" of a select list of essential medicines as defined by the World Health Organisation and that are commonly counterfeited in developing countries.



Table 1: Capabilities of QR medicine authentication

What can QR do? What can't QR do?

Analyse crystalline solids included in pills, powders and oral suspensions

Look at liquids or amorphous solids
Target the API uniquely Assay the complete pill
Be quantitive as well as qualitative Target medicines with no quadrupole nucleus
See through optically opaque non-metallic packaging See through fully metallic packaging
Discriminate between different polymorphs Easily identify an unknown medicine
Provide information that can be related to the source of the API

Work quickly when the sample mass is very low




Prototype

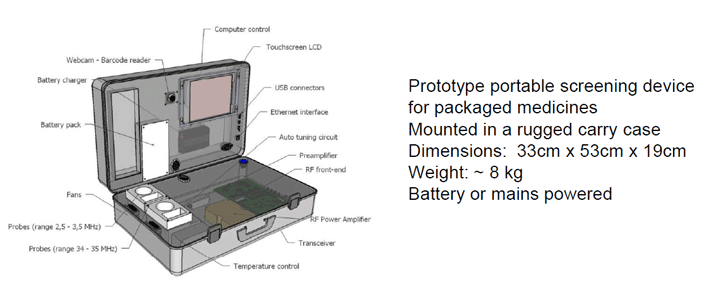

A portable medicines authentication machine has been constructed. A simple four-step process is used to authenticate the contents of the sealed medicine packet:

Step 1: Scan the barcode of the medicine package

Step 2: Drop the packet into the scanner - no need to discard packaging

Step 3: Press "go" - the system is fully automated

Step 4: A green/red light indicates whether the packet is authentic or not
